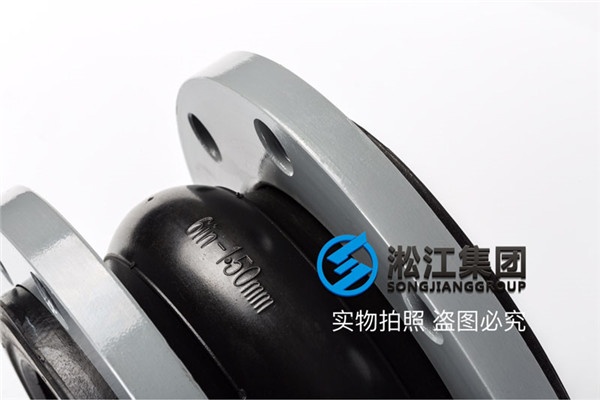

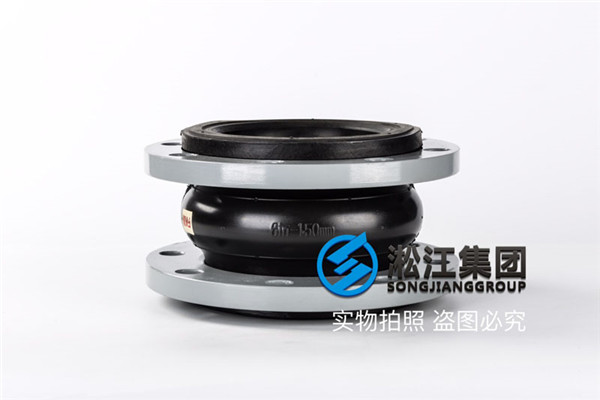

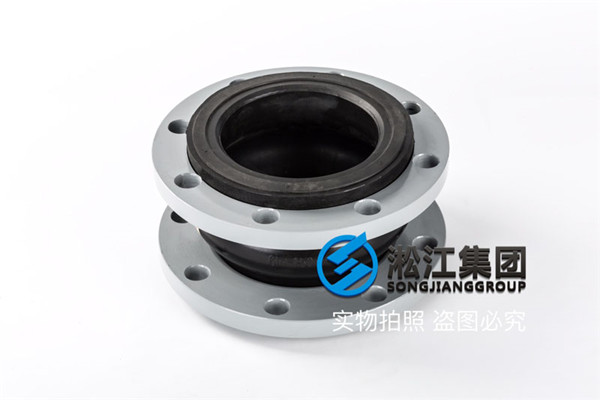

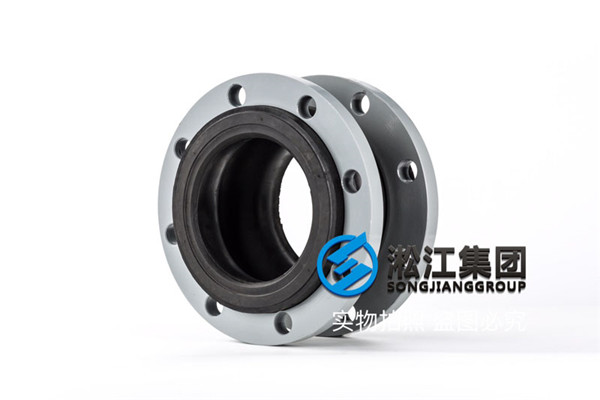

上海淞江减震器集团有限公司介绍：DN150氟胶单球铜矿柔性橡胶接头产品信息，这里说下DN150氟橡胶补偿器参数：长度180mm，轴向压缩18mm，轴向拉伸10mm，横向位移12mm。淞江集团为客户提供氟胶单球橡胶接头，采用氟橡胶生产，具有良好的耐酸碱和耐高温效果，主要用于化工厂管道系统。

Shanghai Songjiang shock absorber Group Co., Ltd. introduces the product information of the single ball rubber compensator made of DN 150 fluororubber. Here are the parameters of the compensator: length 180 mm, axial compression 18 mm, axial tension 10 mm, and transverse displacement 12 mm. Songjiang group provides fluorine rubber single ball rubber joint for customers, which is produced by fluorine rubber. It has good acid alkali resistance and high temperature resistance, and is mainly used in chemical plant pipeline system.

氟橡胶具有优良的物理机械性能。26型氟橡胶一般配合的强力在10~20MPa之间，扯断伸长率在150~350%之间，抗撕裂强度在3~4KN/m之间。23型氟橡胶强力在15.0~25MPa之间，伸长率在200%~600%，抗撕裂强度在2~7MPa之间。一般地，氟橡胶在高温下的压缩永久变形大，但是如果以相同条件比较。

Fluororubber has excellent physical and mechanical properties. The strength of 26 type fluororubber is 10 ~ 20MPa, the elongation at break is 150 ~ 350%, and the tear strength is 3 ~ 4kn / m. The strength of 23 fluororubber is 15.0 ~ 25MPa, the elongation is 200% ~ 600%, and the tear strength is 2 ~ 7MPa. Generally, the compression set of fluororubber at high temperature is large, but if compared under the same conditions.
